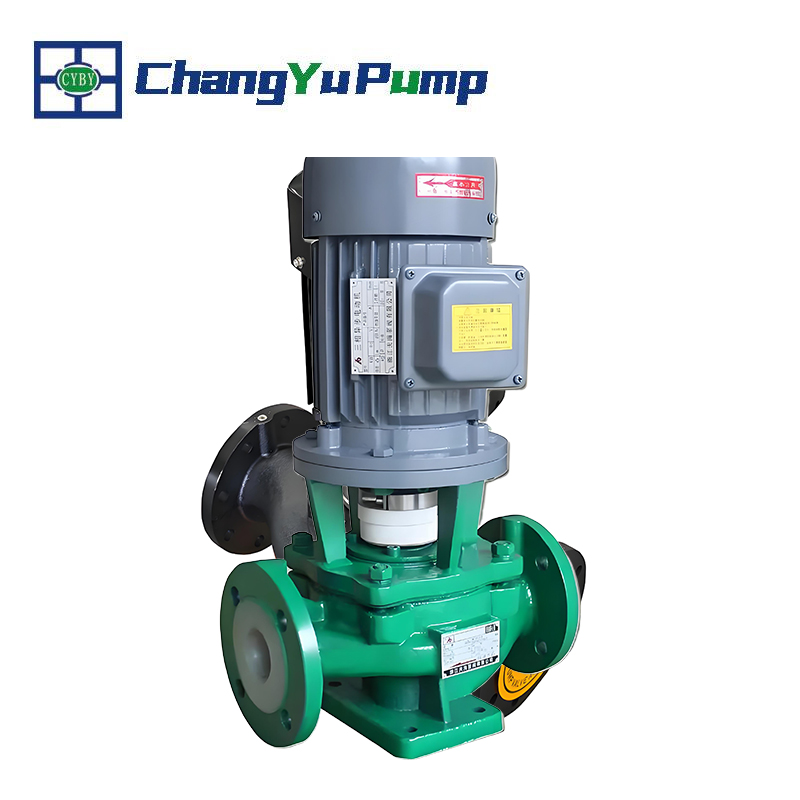

CYL Type Vertical Inline Centrifugal Pump

The Vertical Inline Centrifugal Pump is also suitable for long-distance water supply, HVAC refrigeration circulation, bathroom hot and cold water supply, and other circulation pressurization and equipment matching needs. Its material and sealing structure can adapt to a medium temperature range of 0°C to 200°C, with reliable performance and a wide range of applications, making it an ideal solution for fluid transportation in modern buildings and industrial systems.

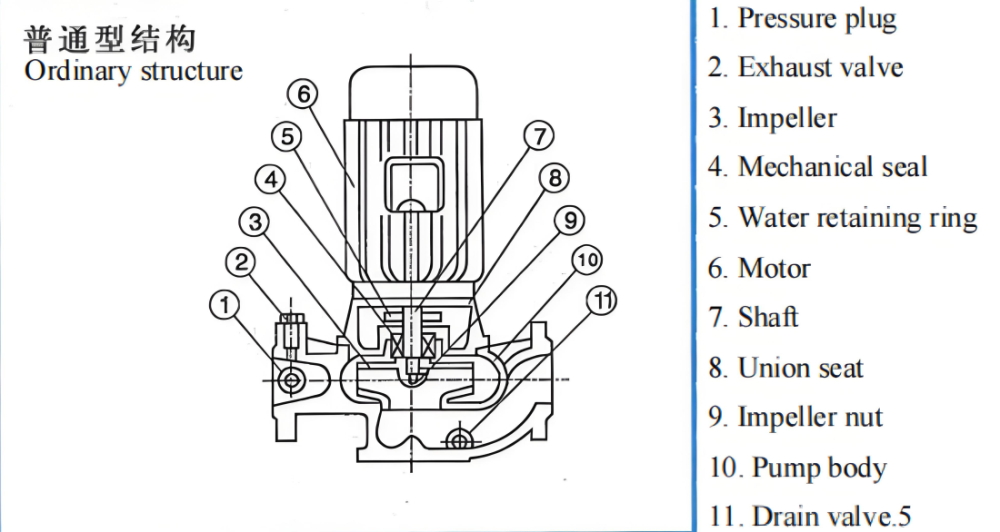

Vertical Inline Centrifugal Pump Parts

The CYL vertical pipeline centrifugal pump mainly consists of core components such as the pump body, impeller, shaft, mechanical seal, and motor. If you need detailed configuration or customization options, please feel free to contact us for a quote.

Features

Compact structure, small size, neat appearance, and minimal floor space. With a protective cover installed, it can be adapted to outdoor installation environments.

The impeller is directly mounted on the motor shaft, ensuring high concentricity, smooth operation, and a long service life.

Hard alloy mechanical seals or combination seals are used, offering excellent wear resistance, high sealing reliability, and extended service life.

The inlet and outlet are designed with the same diameter, facilitating pipeline connections and allowing maintenance without disassembling the pipeline system.

Supports series or parallel operation of pumps, flexibly adapting to different flow rate and head requirements.

The suction and discharge ports can be adjusted to different installation directions (same direction, 90°, 180°, 270°), facilitating adaptation to on-site pipeline layouts.

Application

• The CYL Type Vertical Inline Centrifugal Pump is suitable for industrial and urban water supply and drainage systems, as well as pressure boosting for high-rise buildings, meeting the demand for continuous and stable water supply.
• It can be used for fire protection system pressure boosting, landscape irrigation, and long-distance water transportation, ensuring reliable liquid supply and pressure maintenance.
• It is widely used in heating, ventilation, and air conditioning (HVAC), heating, and hot/cold water circulation systems, supporting hot/cold water circulation and pressure boosting.
• It is suitable for pressure boosting in bathrooms and restrooms, as well as for various heat exchangers, refrigeration units, and other equipment.

Vertical Inline Centrifugal Pump Manufacturer and Supplier

As a professional manufacturer and supplier of vertical pipeline centrifugal pumps, Changyu Pump boasts a mature production system and robust R&D capabilities, enabling us to provide customers with stable, efficient, and diverse pump products. We offer customized production solutions, including self-priming centrifugal pumps, magnetically driven pumps, and various other types of industrial pumps, capable of flexibly meeting different operational conditions and medium requirements.

If you require a customized solution or product selection advice, please provide specific parameters (such as flow rate, head, medium, temperature, and application scenario, etc.), and our professional team will provide you with a tailored solution. Feel free to contact us at any time to obtain detailed product information or a quote!
